Manage Redis on AWS from Kubernetes


Using AWS Controller for Kubernetes and CDK for Kubernetes

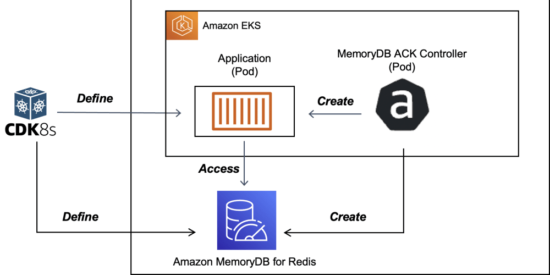

In this blog post, you will learn how to use ACK with Amazon EKS for creating a for Redis cluster on AWS (with Amazon MemoryDB).

AWS Controllers for Kubernetes (also known as ACK) leverage Kubernetes Custom Resource and Custom Resource Definitions and give you the ability to manage and use AWS services directly from Kubernetes without needing to define resources outside of the cluster. It supports many AWS services including S3, DynamoDB, MemoryDB etc.

Normally you would define custom resources in ACK using YAML. But, in this case we will leverage cdk8s (Cloud Development Kit for Kubernetes), an open-source framework (part of CNCF) that allows you to define your Kubernetes applications using regular programming languages (instead of yaml). Thanks to cdk8s support for Kubernetes Custom Resource definitions, we will import MemoryDB ACK CRDs as APIs and then define a cluster using code (I will be using Go for this).

That’s not all! In addition to the infrastructure, we will take care of the application that will represent the application which will connect with the MemoryDB cluster. To do this, we will use the cdk8s-plus library to define a Kubernetes Deployment (and Service to expose it), thereby building an end to end solution. In the process, you will learn about some of other nuances of ACK such as FieldExport etc.

I have written a few blog posts around cdk8s and Go, that you may find useful


To follow along step-by-step, in addition to an AWS account, you will need to have AWS CLI, cdk8s CLI, kubectl, helm and the Go programming language installed.

There are a variety of ways in which you can create an Amazon EKS cluster. I prefer using eksctl CLI because of the convenience it offers!

First, set up the MemoryDB controller

Most of the below steps are adapted from the ACK documentation – Install an ACK Controller

Install it using Helm:

export SERVICE=memorydb
export RELEASE_VERSION=`curl -sL$SERVICE-controller/releases/latest | grep '"tag_name":' | cut -d'"' -f4`
export ACK_SYSTEM_NAMESPACE=ack-system

# you can change the region as required
export AWS_REGION=us-east-1

aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin

helm install --create-namespace -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller
  oci://$SERVICE-chart --version=$RELEASE_VERSION --set=aws.region=$AWS_REGION

To confirm, run:

kubectl get crd

# output (multiple CRDs)
NAME                                         CREATED AT               2022-08-13T19:15:46Z            2022-08-13T19:15:53Z           2022-08-13T19:15:47Z             2022-08-13T19:02:10Z                2022-08-13T19:15:56Z    2022-08-13T19:15:48Z   2022-08-13T19:02:12Z          2022-08-13T19:15:51Z       2022-08-13T19:15:52Z              2022-08-13T19:15:53Z

Since the controller has to interact with AWS Services (make API calls), we need to configure IAM Roles for Service Accounts (also known as IRSA).

Refer to Configure IAM Permissions for details

IRSA configuration

First, create an OIDC identity provider for your cluster.

export AWS_REGION=
eksctl utils associate-iam-oidc-provider --cluster $EKS_CLUSTER_NAME --region $AWS_REGION --approve

The goal is to create an IAM role and attach appropriate permissions via policies. We can then create a Kubernetes Service Account and attach the IAM role to it. Thus, the controller Pod will be able to make AWS API calls. Note that we are using providing all DynamoDB permissions to our control via the arn:aws:iam::aws:policy/AmazonMemoryDBFullAccess policy.

Thanks to eksctl, this can be done with a single line!

export SERVICE=memorydb

# recommend using the same name
export ACK_SYSTEM_NAMESPACE=ack-system
export POLICY_ARN=arn:aws:iam::aws:policy/AmazonMemoryDBFullAccess

# IAM role has a format - do not change it. you can't use any arbitrary name
export IAM_ROLE_NAME=ack-$SERVICE-controller-role

eksctl create iamserviceaccount
    --namespace $ACK_SYSTEM_NAMESPACE
    --cluster $EKS_CLUSTER_NAME
    --role-name $IAM_ROLE_NAME
    --attach-policy-arn $POLICY_ARN

The policy (AmazonMemoryDBFullAccess) is chosen as per

To confirm, you can check whether the IAM role was created and also introspect the Kubernetes service account

aws iam get-role --role-name=$IAM_ROLE_NAME --query Role.Arn --output text

kubectl describe serviceaccount/$ACK_K8S_SERVICE_ACCOUNT_NAME -n $ACK_SYSTEM_NAMESPACE

# you will see similar output

Name:                ack-memorydb-controller
Namespace:           ack-system
Annotations: arn:aws:iam::568863012249:role/ack-memorydb-controller-role
Image pull secrets:
Mountable secrets:   ack-memorydb-controller-token-2cmmx
Tokens:              ack-memorydb-controller-token-2cmmx

For IRSA to take effect, you need to restart the ACK Deployment:

# Note the deployment name for ACK service controller from following command
kubectl get deployments -n $ACK_SYSTEM_NAMESPACE

kubectl -n $ACK_SYSTEM_NAMESPACE rollout restart deployment ack-memorydb-controller-memorydb-chart

Confirm that the Deployment has restarted (currently Running) and the IRSA is properly configured:

kubectl get pods -n $ACK_SYSTEM_NAMESPACE

kubectl describe pod -n $ACK_SYSTEM_NAMESPACE ack-memorydb-controller-memorydb-chart-5975b8d757-k6x9k | grep "^s*AWS_"
# The output should contain following two lines:


Now that we’re done with the configuration, its time for…

cdk8s in action!

We will go step by step:

  • Build and push the application Docker images to private registry in Amazon ECR
  • Deploy MemoryDB along with the application and required configuration
  • Test the application

Build Docker image and push to ECR

Create ECR private repository

Login to ECR:

aws ecr get-login-password --region  | docker login --username AWS --password-stdin

Create private repository:

aws ecr create-repository
    --repository-name memorydb-app

Build image and push to ECR

# if you're on Mac M1
#export DOCKER_DEFAULT_PLATFORM=linux/amd64
docker build -t memorydb-app .

docker tag memorydb-app:latest

docker push

Use cdk8s and kubectl to deploy MemoryDB and the application

This is a ready-to-use cdk8s project that you can use. The entire logic is in main.go file – I will dive into the nitty gritty of the code in the next section.

Clone the project from Github and change to the right directory:

git clone
cd memorydb-ack-cdk8s-go

Generate and deploy manifests

Use cdk8s synth to generate the manifest for MemoryDB, the application as well as required configuration. We can then apply it using kubectl.


# for example:
# export SUBNET_ID_LIST=subnet-086c4a45ec9a206e1,subnet-0d9a9c6d2ca7a24df,subnet-028ca54bb859a4994


# for example
# export SECURITY_GROUP_ID=sg-06b6535ee64980616

# example
# export

You can also add other environment variables MEMORYDB_CLUSTER_NAME, MEMORYDB_USERNAME, MEMORYDB_PASSWORD. These are not mandatory and default to memorydb-cluster-ack-cdk8s, demouser and Password123456789 respectively

To generate the manifests:

cdk8s synth

# check the "dist" folder - you should see these files:


Let’s deploy them one by one, starting with the one which creates the MemoryDB cluster. In addition to the cluster, it will also provision the supporting components including ACL, User and Subnet Groups.

kubectl apply -f dist/0000-memorydb.k8s.yaml

secret/memdb-secret created created created created

Kubernetes Secret is used to hold the password for MemoryDB cluster user.

This initiates the cluster creation. You can check the status using the AWS console. Once the creation is complete, you can test connectivity with redis-cli:

# run this from EC2 instance in the same subnet as the cluster
export REDIS=
# example
# export

redis-cli -h $REDIS -c --user demouser --pass Password123456789 --tls --insecure

Let’s apply second manifest. This will create configuration related components i.e. ConfigMap and FieldExports – these are required by our application (to be deployed after this)

kubectl apply -f dist/0001-config.k8s.yaml

configmap/export-memorydb-info created created created

In this case, we create two FieldExports to extract data from the cluster (from .status.clusterEndpoint.address) and user ( resources that we created before and seed it into a ConfigMap.

ConfigMap and FieldExport:

FieldExport is an ACK component that can “export any spec or status field from an ACK resource into a Kubernetes ConfigMap or Secret. You can read up on the details in the ACK docs along with some examples.

You should be able to confirm by checking the FieldExport and ConfigMap:

kubectl get fieldexport

NAME                       AGE
export-memorydb-endpoint   20s
export-memorydb-username   20s

kubectl get configmap/export-memorydb-info -o yaml

We started out with a blank ConfigMap, but ACK magically populated it with the required attributes:

apiVersion: v1
  default.export-memorydb-username: demouser
immutable: false
kind: ConfigMap

Let’s create the application resources – Deployment and the Service.

kubectl apply -f dist/0003-deployment.k8s.yaml

deployment.apps/memorydb-app created
service/memorydb-app-service configured

Since the Service type is LoadBalancer, an appropriate AWS Load Balancer will be provisioned to allow for external access.

Check Pod and Service:

kubectl get pods
kubectl get service/memorydb-app-service

# to get the load balancer IP
APP_URL=$(kubectl get service/memorydb-app-service -o jsonpath="{.status.loadBalancer.ingress[0].hostname}")

echo $APP_URL

# output example

You have deployed the application and know the endpoint over which it’s publicly accessible. Here is a high-level view of the current architecture:

Image description

Now you can access the application…

It’s quite simple – it exposes a couple of HTTP endpoints to write and read data from Redis (you can check it on GitHub):

# create a couple of users - this will be added as a `HASH` in Redis

curl -i -X POST -d '{"email":"", "name":"user1"}' http://$APP_URL:9090/

curl -i -X POST -d '{"email":"", "name":"user2"}' http://$APP_URL:9090/

HTTP/1.1 200 OK
Content-Length: 0

# search for user via email
curl -i http://$APP_URL:9090/

HTTP/1.1 200 OK
Content-Length: 41
Content-Type: text/plain; charset=utf-8


If you get a Could not resolve host error while accessing the LB URL, wait for a minute or so and re-try

Once you’re done…

… don’t forget to delete resources..

# delete MemoryDB cluster, configuration and the application

kubectl delete -f dist/

# to uninstall the ACK controller
export SERVICE=memorydb
helm uninstall -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller

# delete the EKS cluster. if created via eksctl:
eksctl delete cluster --name

So far, you deployed the ACK controller for MemoryDB, setup a cluster, an application that connects to it and tested the end to end solution. Great!

Now let’s look at the cdk8s code that makes it all happen. The logic is divided into three Charts. I will only focus on key sections of the code and rest will be omitted for brevity.

You can refer to the complete code on GitHub

Code walk through

MemoryDB and related components

We start by defining the MemoryDB cluster along with the required components – ACL, User and Subnet Group.

func NewMemoryDBChart(scope constructs.Construct, id string, props *MyChartProps) cdk8s.Chart {
    secret = cdk8splus22.NewSecret(chart, jsii.String("password"), &cdk8splus22.SecretProps{
        Metadata:   &cdk8s.ApiObjectMetadata{Name: jsii.String(secretName)},
        StringData: &map[string]*string{"password": jsii.String(memoryDBPassword)},

    user = users_memorydbservicesk8saws.NewUser(chart, jsii.String("user"), &users_memorydbservicesk8saws.UserProps{
        Metadata: &cdk8s.ApiObjectMetadata{Name: jsii.String(memoryDBUsername)},
        Spec: &users_memorydbservicesk8saws.UserSpec{
            Name:         jsii.String(memoryDBUsername),
            AccessString: jsii.String(memoryDBUserAccessString),
            AuthenticationMode: &users_memorydbservicesk8saws.UserSpecAuthenticationMode{
                Type: jsii.String("Password"),
                Passwords: &[]*users_memorydbservicesk8saws.UserSpecAuthenticationModePasswords{
                    {Name: secret.Name(), Key: jsii.String(secretKeyName)},

ACL references the User defined above:

    acl := acl_memorydbservicesk8saws.NewAcl(chart, jsii.String("acl"),
            Metadata: &cdk8s.ApiObjectMetadata{Name: jsii.String(memoryDBACLName)},
            Spec: &acl_memorydbservicesk8saws.AclSpec{
                Name:      jsii.String(memoryDBACLName),
                UserNames: jsii.Strings(*user.Name()),

The subnet IDs (for subnet group) as well as the security group ID for the cluster are read from environment variables.

    subnetGroup := subnetgroups_memorydbservicesk8saws.NewSubnetGroup(chart, jsii.String("sg"),
            Metadata: &cdk8s.ApiObjectMetadata{Name: jsii.String(memoryDBSubnetGroup)},
            Spec: &subnetgroups_memorydbservicesk8saws.SubnetGroupSpec{
                Name: jsii.String(memoryDBSubnetGroup),
                SubnetIDs: jsii.Strings(strings.Split(subnetIDs, ",")...), //same as EKS cluster

Finally, the MemoryDB cluster is defined – it references all the resources created above (it has been omitted on purpose):

    memoryDBCluster = memorydbservicesk8saws.NewCluster(chart, jsii.String("memorydb-ack-cdk8s"),
            Metadata: &cdk8s.ApiObjectMetadata{Name: jsii.String(memoryDBClusterName)},
            Spec: &memorydbservicesk8saws.ClusterSpec{
                Name:                jsii.String(memoryDBClusterName),

    return chart


Then we move on to the next chart that handles the configuration related aspects. It defines a ConfigMap (which is empty) and FieldExports – one each for the MemoryDB cluster endpoint and username (the password is read from the Secret)

As soon as these are created, the ConfigMap is populated with the required data as per from and to configuration in the FieldExport.

func NewConfigChart(scope constructs.Construct, id string, props *MyChartProps) cdk8s.Chart {
    cfgMap = cdk8splus22.NewConfigMap(chart, jsii.String("config-map"),
            Metadata: &cdk8s.ApiObjectMetadata{
                Name: jsii.String(configMapName)}})

    fieldExportForClusterEndpoint = servicesk8saws.NewFieldExport(chart, jsii.String("fexp-cluster"), &servicesk8saws.FieldExportProps{
        Metadata: &cdk8s.ApiObjectMetadata{Name: jsii.String(fieldExportNameForClusterEndpoint)},
        Spec: &servicesk8saws.FieldExportSpec{
            From: &servicesk8saws.FieldExportSpecFrom{Path: jsii.String(".status.clusterEndpoint.address"),
                Resource: &servicesk8saws.FieldExportSpecFromResource{
                    Group: jsii.String(""),
                    Kind:  jsii.String("Cluster"),
                    Name:  memoryDBCluster.Name()}},
            To: &servicesk8saws.FieldExportSpecTo{
                Name: cfgMap.Name(),
                Kind: servicesk8saws.FieldExportSpecToKind_CONFIGMAP}}})

    fieldExportForUsername = servicesk8saws.NewFieldExport(chart, jsii.String("fexp-username"), &servicesk8saws.FieldExportProps{
        Metadata: &cdk8s.ApiObjectMetadata{Name: jsii.String(fieldExportNameForUsername)},
        Spec: &servicesk8saws.FieldExportSpec{
            From: &servicesk8saws.FieldExportSpecFrom{Path: jsii.String(""),
                Resource: &servicesk8saws.FieldExportSpecFromResource{
                    Group: jsii.String(""),
                    Kind:  jsii.String("User"),
                    Name:  user.Name()}},
            To: &servicesk8saws.FieldExportSpecTo{
                Name: cfgMap.Name(),
                Kind: servicesk8saws.FieldExportSpecToKind_CONFIGMAP}}})

    return chart

The application chart

Finally, we deal with the Deployment (in its dedicated Chart) – it makes use of the configuration objects we defined in the earlier chart:

func NewDeploymentChart(scope constructs.Construct, id string, props *MyChartProps) cdk8s.Chart {
    dep := cdk8splus22.NewDeployment(chart, jsii.String("memorydb-app-deployment"), &cdk8splus22.DeploymentProps{
        Metadata: &cdk8s.ApiObjectMetadata{
            Name: jsii.String("memorydb-app")}})

The next important part is the container and it’s configuration. We specify the ECR image repository along with the environment variables – they reference the ConfigMap we defined in the previous chart (everything is connected!):

    container := dep.AddContainer(
            Name:  jsii.String("memorydb-app-container"),
            Image: jsii.String(appDockerImage),
            Port:  jsii.Number(appPort)})

            &cdk8splus22.EnvValueFromConfigMapOptions{Optional: jsii.Bool(false)}))

            &cdk8splus22.EnvValueFromConfigMapOptions{Optional: jsii.Bool(false)}))

                Secret: secret,
                Key:    jsii.String("password")},

Finally, we define the Service (type LoadBalancer) which enables external application access and tie it all together in the main function:

            Name:        jsii.String("memorydb-app-service"),
            ServiceType: cdk8splus22.ServiceType_LOAD_BALANCER,
            Ports: &[]*cdk8splus22.ServicePort{
                {Protocol: cdk8splus22.Protocol_TCP,
                    Port:       jsii.Number(lbPort),
                    TargetPort: jsii.Number(appPort)}}})

func main() {
    app := cdk8s.NewApp(nil)

    memorydb := NewMemoryDBChart(app, "memorydb", nil)
    config := NewConfigChart(app, "config", nil)

    deployment := NewDeploymentChart(app, "deployment", nil)

    deployment.AddDependency(memorydb, config)

That’s all for now!

Wrap up..

Combining AWS Controllers for Kubernetes and cdk8s can prove useful if you want to manage AWS services as well as the Kubernetes applications – using code (not yaml). In this blog you saw how to do this in the context of MemoryDB and an application that was composed of a Deployment and Service. I encourage you to try out other AWS services as well – here is a complete list.

Until then, Happy Building!

Leave a Reply

Your email address will not be published. Required fields are marked *

Previous Post

Javascript: IIFE – Immediately Invoked Function Expression

Next Post

Add QR code to React websites in 2 minutes 😎✨

Related Posts
